AXORA | SPINE Series Magnetic Track Lighting Module 15W – Axora lighting

AXORA | SPINE Series Magnetic Track Lighting Module

Fixture Specifications

TYPE: Magnetic Track Lighting Module
SIZE: Ø 45 mm x 125 mm
Beam Angle: 19° / 24° / 36° / 43°
Weight: 0.45kg
Frame: Aluminum housing, available in sandy white and sandy black finish
Cone: Aluminum, available in sandy white and sandy black finish
Lamp: COB LED
Color Temperature: 2700K / 3000K / 3500K / 4000K
Color Rendering: CRI 90
Up to Lumen Output: 1083 lm

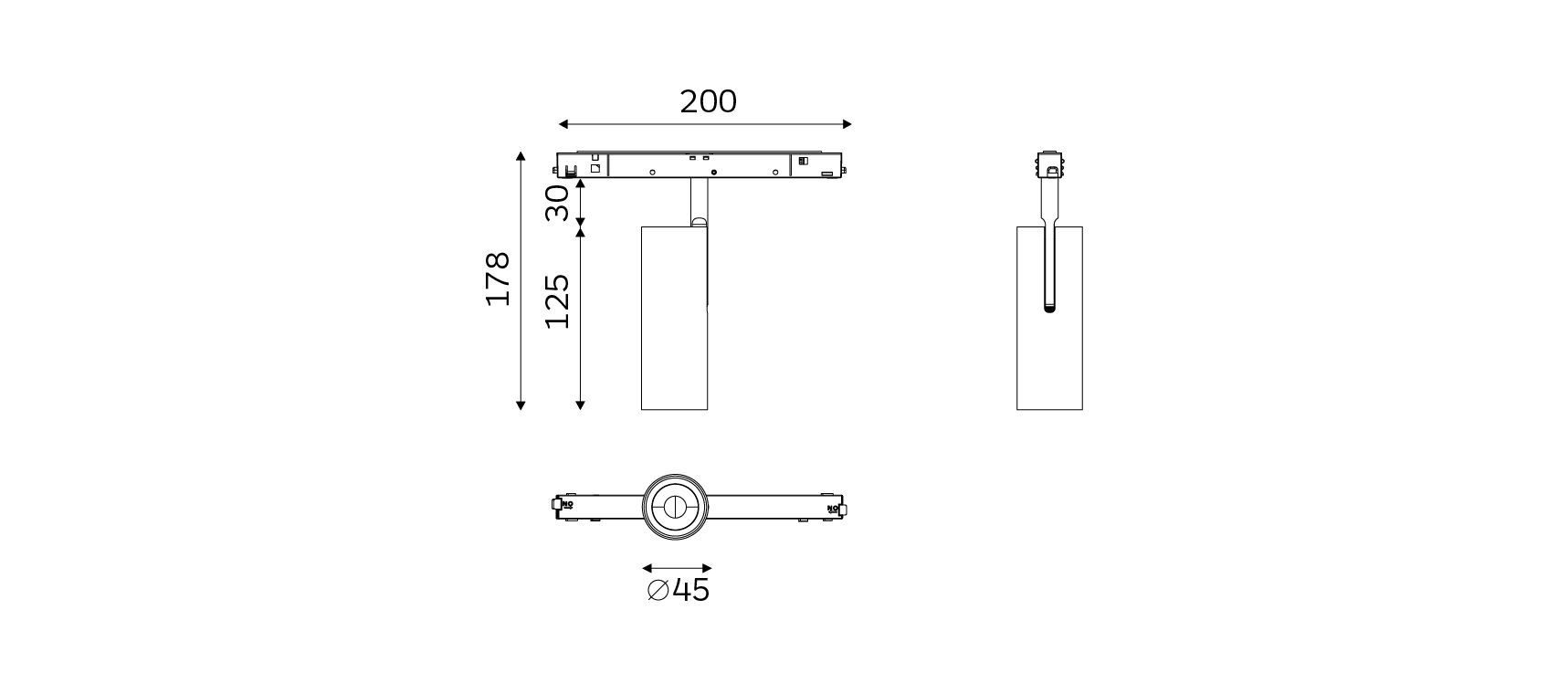

Dimensions

　Driver Specification

　Driver Type: Internal Driver
　Brand: Eaglerise
　Dimming: Eaglerise, 0-10V or DALl dimming options
　Input Voltage: 48V
　Mark: —

　Option Accessories

Honeycomb louver

　Optional optical accessories for beam shaping and glare control
